RS232 Service Kit – PLUS

579.00 ex. VAT

Toolset in-a-box to debug serial RS-232 communications

In stock (can be backordered)

SKU: 10302 Categories: , Tag:

Description

A Service kit "PLUS" to troubleshoot RS232

Don’t miss anything when you are going to analyse RS232 connections! All necessary tools in a small case and with a special price!

A trouble saving toolkit for engineers, technicans, developer and all who install, analyse, repair and check RS232 equipments and connections. For all who like to have all needed tools ready to hand.

Package contents

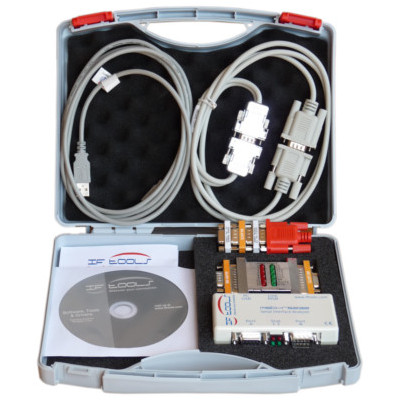

  • 1 x Practical storage case
  • 1 x MSB-RS232-PLUS Analyzer with activated Switch Option
  • 1 x USB cable to connect the analyzer with your PC
  • 1 x W232 cable for non-interruptable analysis
  • 1 x Led tester 25pin for a first check
  • 1 x 25pin DSub male to 9pin female adapter
  • 1 x 25pin DSub female to 9pin male adapter
  • 1 x Null modem adapter
  • 1 x Loopback adapter
  • 1 x 9pin DSub male to male Gender Changer
  • 1 x 9pin DSub female to female Gender Changer
  • 1 x CDROM with Software (Windows + Linux), 300-page manual (PDF), drivers and additional tools
3 years warranty
Typical analyzer software screen

More information on IFtools website.

MSB-RS232-PLUS Analyzer
Baud RatesAny baud rate between 1Baud…1MBaud
Data Format5…9 Data bits, none, even, odd, mark, space parity, any stop bits
Logical LinestatesDetection and display of logical linestates:
1 (V+), 0 (V-), invalid (-1.3V < IN < +1.3V
Time resolution10ns for all line change events (hardware based, OS independent)
Signal inputRS232 standard level, ±7V to ±12V, ESD protected inputs 5kΩ
Bus connectorsStandard D-Sub 9pin connectors, male and female, linked through high speed and via software switchable RS232 buffers
Logic ModeAll RS232 inputs are adjustable as logic inputs with trigger level 1.3V, 5kΩ
OperationThe analyzer marks every event (data byte, signal alternation) with a time stamp in 1µs resolution (independent of the PC) and send the information via USB to the connected PC
FeaturingReal time analysing and simultaneous access/display of different record parts even during an active recording
Capacity4GByte max. record file size on PC for real time analysing. Unlimited (or free hard disk space) records when using the special command line API for long time recordings
Record timeThe record time depends on the selected kind of events and data rate of the connection
Supported Protocols3964(R), BACNet, DF1, DNP3, IEC60870, MDB, Modbus (ASCII + RTU), Profibus, SAE-J1587, SAE-J1922, SRecord, USS, 9-Bit.
Individual protocolsAdaption of any protocol and telegram display with own protocol templates written in Lua
Switch OptionThe activated Switch Option consists of an integrated schematic switch editor which extends the analyzer by the capability to interactively alter the signals lines, inject data, reroute and invert RS232 lines.
RS232 Interface Tester
Connectors9 or 25 RS232 D-Sub male/female.
RS232 linesTXD, RXD, RTS, CTS, DSR, DCD, QM, SRTS, DTR
Line statusRed/green LEDs for every line indicating green=idle (logic 1), red=active (logic 0) or invalid (off) line state.
Plastic case
MaterialPolypropylen (PP)
Dimension255mm x 210mm x 48mm
Weightca. 640g with content

RS232-Service-Kit-PLUS

Product code: 10302

In stock

499,00 €

Add to cart
